Key Milling Vise

We can provide customers with three kinds of key milling vise: milling vise, adjustment vise for copy key and vise for copy key.

Key Milling Vise

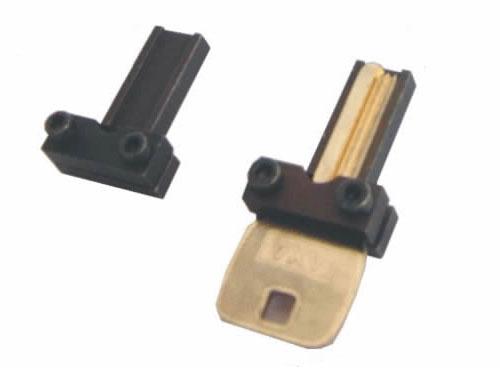

1. T22A Key Milling Vise
The T22A key milling vise is suitable to duplicate blade keys for a wide range of thickness with high accuracy on all types of vertical duplicating machines.


Key Milling Vise

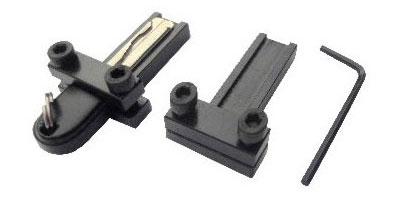

2. T22B/ T22C/ T22D Key Milling Vise
We offer three models of key milling vise with different slot widths which are 6.5mm for T22B, 7.8mm for T22C, and 9mm, respectively. They are suitable to duplicate blade keys with high accuracy on all types of vertical duplicating machines.

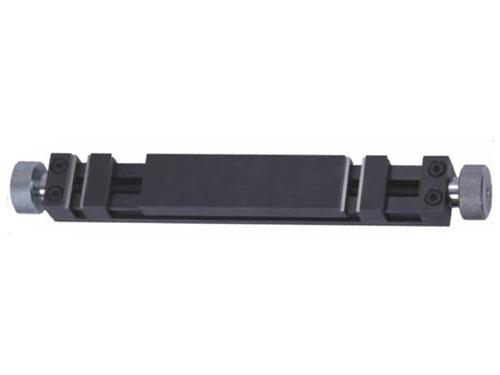

3. Milling vise
With 223mm×27mm×22mm, the milling vise is suitable for key duplicator 100-F1, key duplicator 100-F, key duplicator 100-G1, key duplicator 100-G2 and key cutting machine 202-A.

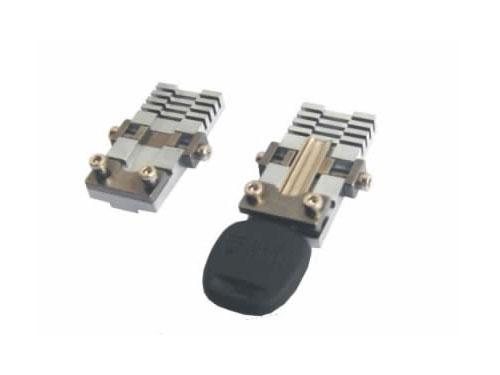

4. Adjustment vise for copy key
With 49.5mm×31mm×10mm, the adjustment vise for copy key is suitable on key duplicating machine 333-L, key duplicating machine 339, key duplicating machine Q36, key duplicating machine Q38, key duplicating machine Q39 and key duplicating machine 383-AC.

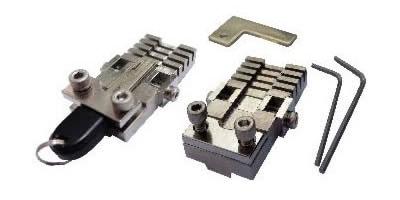

5. Vise for copy key
With 39.5mm×28mm×10mm, the vise for copy key is suitable on key duplicating machine 333-L, key duplicating machine 339, key duplicating machine Q36, key duplicating machine Q38, key duplicating machine Q39, key duplicating machine 383-AC.

Specifications of Key Milling Vise

Key Milling Vise
Specifications Suitable for the models
Milling vise 223mm×27mm×22mm 100F , 100F1 , 100G1 , 100G2 , 202A
Key Milling Vise
Specifications Suitable for the models
Adjustment vise for copy key 49.5mm×31mm×10mm 333-L , 339 , Q36 , Q38 , Q39 , 383AC
Key Milling Vise
Specifications Suitable for the models
Vise for copy key 39.5mm×28mm×10mm 333-L , 339 , Q36 , Q38 , Q39 , 383AC

Note: You can purchase the key milling vise unit separately.

As an experienced key milling vise manufacturer in China, Wenxing offers a comprehensive range of products that includes key hook stand, key milling cutter, key duplicator, titanium key machine cutter, key duplicating machine, key machine and many others.
