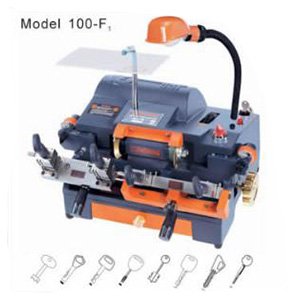

Key Duplicator 100-F1

Key Duplicator 100-F1
Inquiry Form

1. The 100-F1 key duplicator can cut extra long handle keys with saw-teeth grooves and right angle grooves accurately.
2. With latest design, this type of key duplicator has ideal functions. Its left vises assembly can be rotated and has 4-way jaws which allow it to cut a wide variety of keys accurately.
3. The 100-F1 key duplicator has upper and lower layers for the right vises assembly. The right vises assembly can also be four-side use and rotated, it can duplicate many right angle teeth keys.
4. For using the 100-F1 key duplicator outdoors, we provide the 100-F1 DC that can connect to 12V DC vehicle power and whose appearance and other functions are the same.

Configurations of Key Duplicator 100-F1
1) Motor
a) AC, available in different voltages and frequencies, 180W
b) DC, 12V, 180W
2) HSS cutter
a) Left: No. 0011B
100T titanium key machine cutter specification: 70×7.3×12.7×40º×100T
b) Right: No. 0020A
Three sided titanium cutter specification: 70×1.3×25.4×90T
3) Adjusting: The 100-F1 key duplicator is equipped with guide stepping micro-adjustment device
4) Vise: The vise of this key duplicator has 4-way jaws.

Technical Specifications of Key Duplicator 100-F1

Motor AC220V/110V 50/60Hz 180W or DC12V 180W
Cutter HSS Left:NO.0011B Right:NO.0020A
Adjusting Set with guide stepping micro-adjustment device
Vise 4-way jaws
Actual Dimension 42×33×25cm
Carton Dimension 51×41×32cm

As a professional key duplicator manufacturer and supplier in China, we also offer key cutting machine, key machine cutter, key duplicating machine, 60T titanium key machine cutter, alloy key cutter, key drilling cutter, among others.
